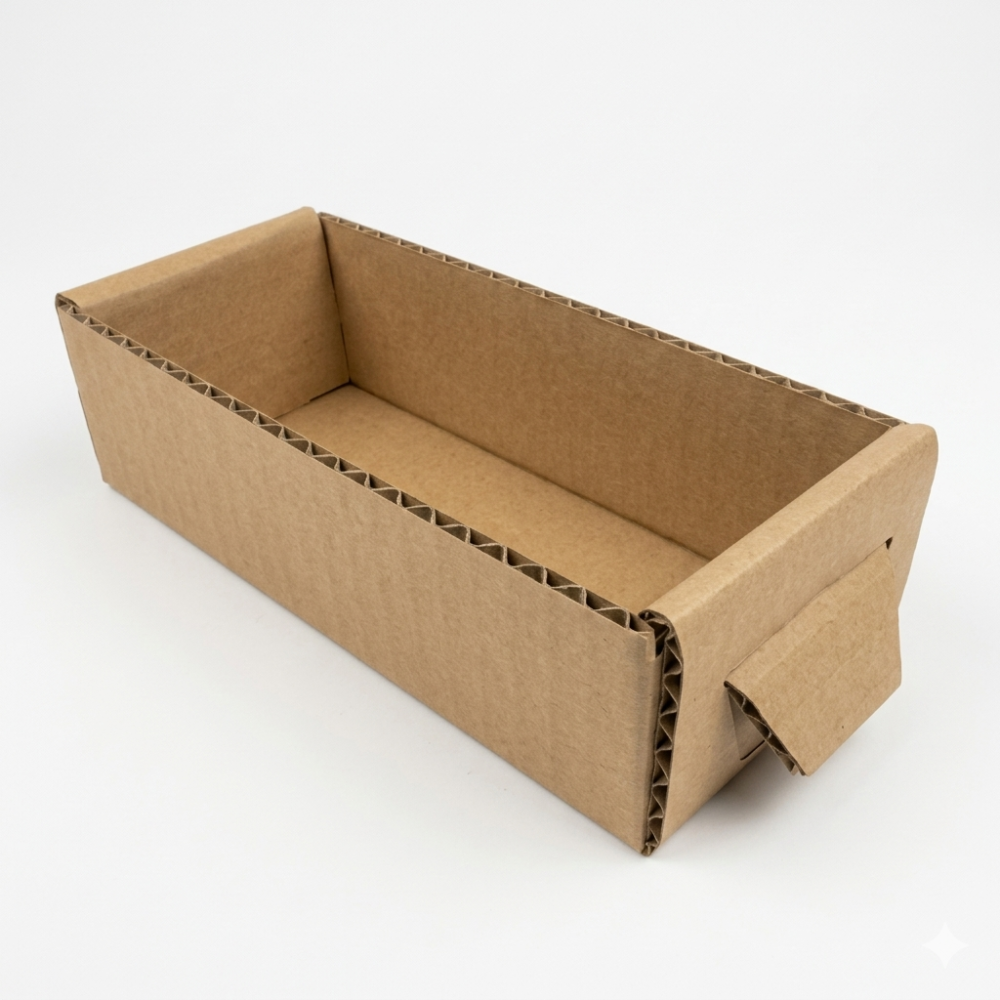

Cardboard Organizer Case with Drawer
$10.00
Create a sleek and compact storage solution with our Cardboard Organizer Case and Drawer template. This digital download includes templates for both the integrated case and matching drawers, designed for precision via laser or hand-cutting. While the built-in slots and tabs on the case will ensure a perfect fit during assembly, glue must be applied to all joints for a durable, professional finish.
Important: This is an Instant Digital Download. You are purchasing digital templates for DIY assembly; no physical items will be shipped.
Product Specifications
| Feature | Organizer Case | Individual Drawer |
|---|---|---|
| Finished Size | 207mm (W) x 153mm (L) x 141mm (H) | 60mm (W) x 140mm (L) x 40mm (H) |
| Material | Optimized for 3mm cardboard | Optimized for 3mm cardboard |
| Key Feature | Precision tab-and-slot assembly | Integrated fold-out handle |
Cut List & Assembly
Organizer Case
- Parts: 2x Horizontal Slots, 2x Vertical Slots, 2x Sides, 1x Top, 1x Bottom, 1x Back.
- Steps:
- After applying glue, slide the horizontal and vertical slots together to form the internal grid.
- Glue the outer panels (sides, top, and bottom) around the grid.
- Secure the back panel with glue to stabilize the entire unit.
Individual Drawer
- Prep: Cut all solid black lines. Score all red lines for clean, crisp folds.
- Handle: Score the area between the two handle cuts on the outside and fold outward to create the handle.
- Steps: Fold along the scored lines and apply glue to the tabs. Secure with clamps until set.
Pro Tip: For a professional finish, use a ruler and a dull tool (like a bone folder or rounded pencil) to score your fold lines before bending.
